Category: Crushing equipment
Introduction: OverviewThis machine is composed of three parts: the main machine, auxiliary machine, and electric control box. It has various properties such as air separation, no screen, and uniform particle size. The production process is continuous and suitable f…
Inquire: 0086-519-8867-4955
Inquire
Contact

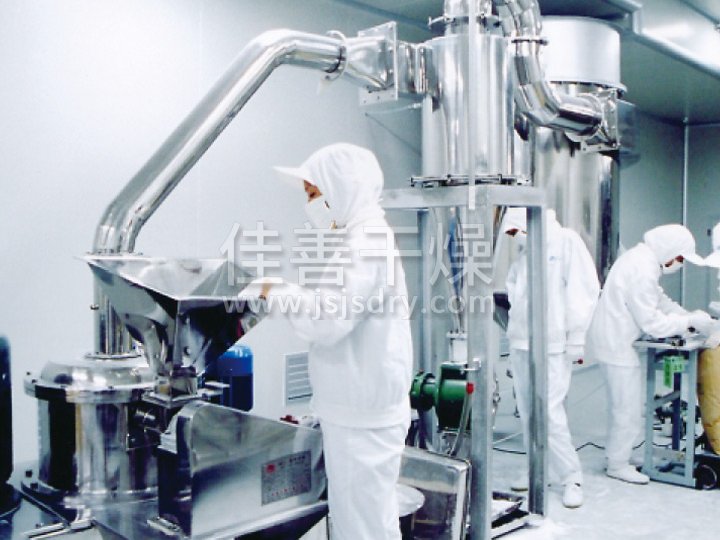

This machine is composed of three parts: the main machine, auxiliary machine, and electric control box. It has various properties such as air separation, no screen, and uniform particle size. The production process is continuous and suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, and food.
| model | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed particle size | mm | ＜10 | ＜10 | ＜15 |
| Discharge size | mesh | 80-320 | 80-450 | 80-450 |
| total power | kw | 13.5 | 17.5 | 46 |
| Main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
