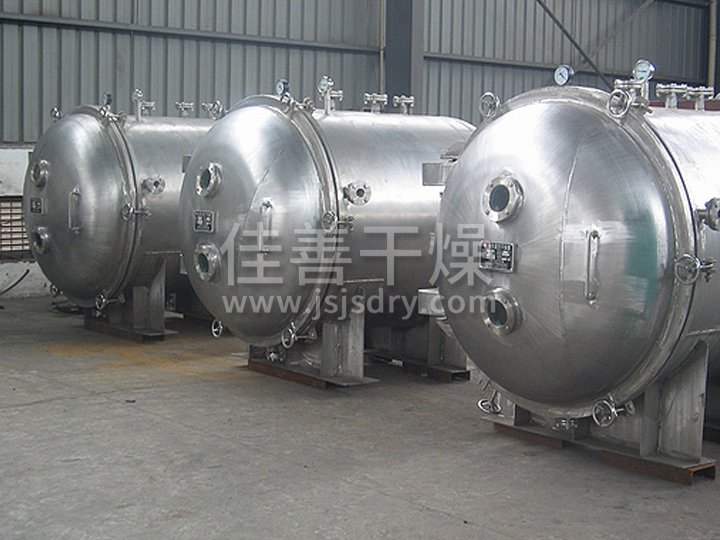

YZG circular static vacuum dryer

Working principle

The so-called vacuum drying refers to heating and drying dry materials under vacuum conditions. If a vacuum pump is used for air extraction and dehumidification, the drying speed is accelerated.

Note: If a condenser is used, the solvent in the material can be recovered through the condenser. If the solvent is water, the condenser can be used to save energy investment.

Performance characteristics

The boiling point of the material solution under vacuum decreases, which increases the heat transfer driving force of the evaporator. Therefore, a certain amount of heat transfer can save the heat transfer area of the evaporator.

The heat source for evaporation operation can be low-pressure steam or waste heat steam.

The evaporator has less heat loss.

Before drying, disinfection treatment can be carried out, and there is no impurity contamination during the drying process, which meets GMP requirements.

It belongs to a static vacuum dryer, so the shape of the dried material will not be damaged.

Adapt to materials

Suitable for low-temperature drying of heat sensitive materials that are prone to decomposition, polymerization, and deterioration at high temperatures; It is widely used in industries such as pharmaceuticals, chemicals, food, electronics, etc.

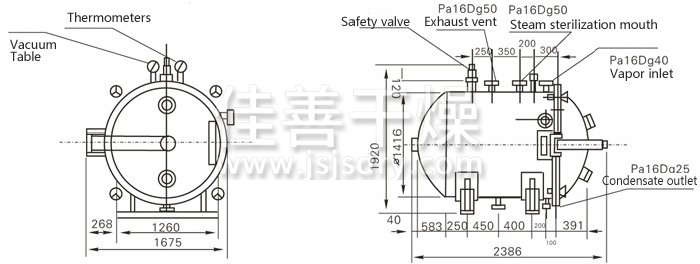

Structural diagram

Technical specifications

Name/Specification	YZG-600	YZG-800	YZG-1000	YZG-1400A
Drying box size	Ф600×976	Ф800×1247	Ф1000×1527	Ф1400×2054
External dimensions of the drying oven	1135×810×1024	1700×1045×1335	1693×1190×150	2386×1675×1920
Number of layers of drying rack	4	4	6	8
Interlayer distance	82	82	102	102
Oven size	310×600×45	520×410×45	520×410×45	460×640×45
Number of baking plates	4	8	12	32
Pressure inside the drying rack tube	≤0.784	≤0.784	≤0.784	≤0.784
Operating temperature of drying rack	35-150	35-150	35-150	35-150
Empty vacuum inside the box	-0.09～0.096
The gasification rate of water at -0.1 MPa and heating temperature of 110 ℃	7.2	7.2	7.2	7.2
When using a condenser, the model and power of the vacuum pump	2X-15A / 2KW	2X-30A / 3KW	2X-30A / 3KW	2X-70A / 5.5KW
When the condenser is not used, the model and power of the vacuum pump	SK-0.8 /2.2KW	SK-2.7 / 4KW	SK-3 /5.5KW	SK-6 / 11KW
Drying oven weight	250	600	800	1400

Note: The water ring vacuum pump is combined with mechanical boosting to improve the vacuum degree.

Ordering instructions

When placing an order, please choose a suitable vacuum dryer based on factors such as the initial moisture content, final moisture content, temperature, vacuum degree, drying amount, and drying time of the dried material. There are four heating methods in the same model of vacuum dryer, namely steam, hot water, thermal oil, and electric heating. For example, in order to increase the drying capacity, it is advisable to increase the number of layers of the drying rack. Please inform our factory in a timely manner.

Our factory can provide and install the accessories in the vacuum drying system mentioned in the user manual. Please specify them when placing an order.

Our company can provide design, manufacturing, and installation for special requirements in vacuum drying systems proposed by users.

Our company's equipment implements three guarantees of quality for users. All accessories are provided for a long time, please rest assured.
